Model Line

The features of “LAKHTA-MILON” and “LSP” models are optimized for the direct medical purposes.

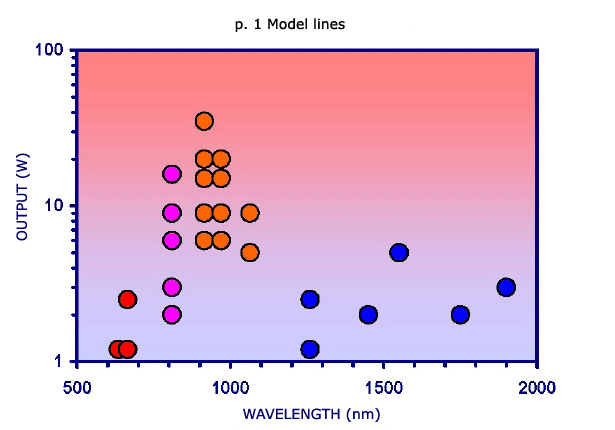

The lines of “LAKHTA-MILON” and “LSP” models (p.1) include 25 modifications, letting to choose a device with parameters, optimally corresponding specific medical technology, namely with the necessary output power and wavelength.

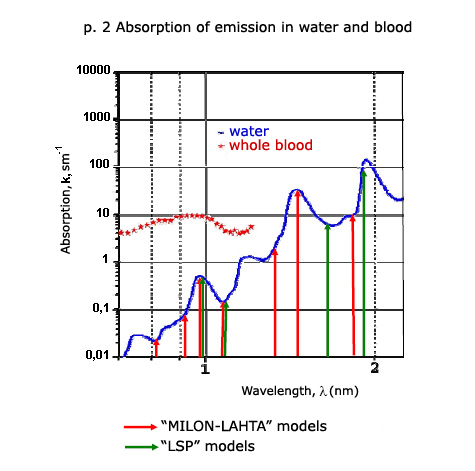

The wavelength determines the depth of laser emission tissue penetration, and as sequence, the type of action of this emission upon the object. To illustrate it, we can see on p.2 the emission absorption curves in water and blood, depending on the wavelength.

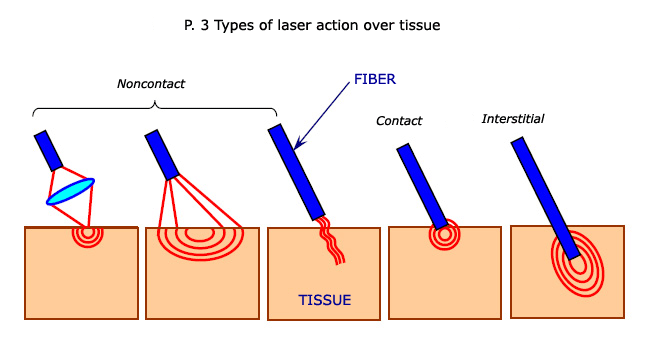

Another important aspect of laser implementation is the proper choice of laser instrument. On p.3 you can see a scheme on various types of laser instruments and corresponding laser action.

“LAKHTA-MILON” and “LSP” models, devoted to different medical technologies are accompanied by fiber instruments, providing for the exact type of laser action, necessary for the exact medical technology. Optionally, the models can be accompanied with additional instruments, spreading the field of their implementation.

Special features of LAKHTA-MILON and LSP models

• The Models, based on diode lasers are highly reliable. The life duration of such emitters(laser diodes) makes as a rule from 10000 to 100000 hours of permanent work, therefore models on their basis can sooner get morally old, than loose their technical resource. Therefore such models don't practically need after-sales service.

The models don't as well need setting in operation works, ready for work directly after the connection, have small size and weight, letting to easily move them in the medical establishment.

• The majority of models use output optical cutoff point of noncontact type. Compared to contact type cutoff point, noncontact type cutoff point has a much longer durability period. Its durability period is determined as the secure number of connections of fiber to the cutoff point and in case of contact type cutoff point makes not more than 50-200 cycles. In its turn, noncontact type cutoff point has a practically unlimited durability period, because inside the cutoff point there is no touch of optical surfaces of fibers in the process of connection of the working fiber.

• One or two laser chanells can be set in the model with laser emitters of any wavelength from 0,63 to 2,1 mkm.

• High brightness of emission – fiber diametr from 100 mkm.

• No water cooling needed.

• Low energy consumption.

• Five years of warranty and post-warranty services.

There are additional features of LAKHTA-MILON model:

• large high resolution graphic display;

• number indication and regulation of output, energy, impulse length, interval, exposition, brightness of sight;

• microprocessor regulation and sign synthesising indicator, providing for the maximal convenience of work;

• work in the modes: continuous, auto selection, single impulses mode;

• direct and reverse count of exposition and impulse counter;

• possibility to choose English or Russian interface.
