Laser ophthalmological coagulator LAKHTA-MILON
Untitled Document
| |
|
|
Maximal transmission and minimal scattering by eye optical tissues (cornea, crystalline lens, vitreous humor), hemostatic characteristics of near Infrared radiation are letting to use laser coagulator with 810 nm wavelength for solutions of various ophthalmosurgery tasks. Moreover, coagulation is easily endured by patients because of the absence of dazzling emission effect, that is especially important for pediatric ophthalmology.
Potential of laser coagulator is getting richer due to the implementation of different means of radiation delivery: slit lamp, binocular indirect
ophthalmoscope , flexible fiber instruments. |
|

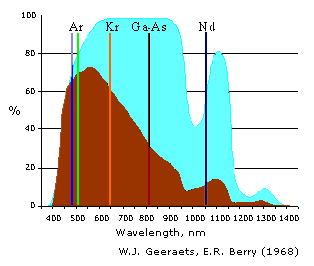

Spectral characteristics of eye tissues
|
 |
 |
transmission by optical tissues |
 |
absorption by epithelium
of
retina
and
choriodea |
Technical features
| parameter |
value |
emission wavelength, nm |
810 |
output optical power, W |
0,1-3 |
aiming laser wavelength,nm |
650 |
aiming laser output power, mW |
0-1.0 |
exposition time |
0,01s – 6 hours, continuously |
impulse pause length,s |
0.01 - 1 |
endoinstrument fiber core diameter, mkm |
170 - 1700 |
diameter of the laser spot in focus plan on the use of slit lamp, mkm |
150, 250 |
diameter of the laser spot in focus plan on the use of
headworn indirect ophthalmoscope
, mkm |
400 |
power supply / electrical power, V/W |
~100…..240V, 50-60hertz /100W |
size, mm |
200õ170õ280 |
weight, not more than, kg |
7 |
| |
|
|
Standard set |
|
|
Laser Ophthalmological Coagulator "LAKHTA-MILON" |
|
Magistral fiber |
|
Power cord |
|
Foot pedal |
|
Òechnical documentation |
|
| |
|
Complementary equipment: |
|
Laser adapter to a slit lamp * |
|
Laser adapter to a headworn ophthalmoscope * |
|
|
|
|
|
Laser adapter used with laser ophthalmological coagulator and a slit lamp for transpuppilary operations
|
|
|
Fiber instruments for
transscleral
operations: |
|
|
| |
|
|
Straight endoprobe G20 |
|
|
Angled endoprobe G20 |
|
|
Set of nozzles for cyclophotocoagulation (3 items) |
|
|
Set of reusable endopieces G20 |
|
|
Endoprobe for transscleral retinopexy «Side-fiber» |
|
|
| |
|
|
* Adapter structure provides for the specialists' eye protection from reflected laser radiation. |
|
|
| |
|
Slit lamps with the upper lighter can be used: |
|
| |
|
TAKAGI ( SM-10; SM-70 ) |
|
REICHERT ( XCEL 400 ) |
|
TOPCON ( SL 7 F ; SL 3 F ; SL 3 C ) |
|
Laser adapter used with laser ophthalmological coagulator and headworn indirect ophthalmoscope for transpuppilary operations |
KOWA ( SL -16 ) |
|
SHIN - NIPPON ( SL-203; SL-102; SL-101 ) |
|
INAMI ( L -187; L -185; L -0240 ) |
|
VISION66 ( YZ-5F1 ) |
|
and other. |
|
|
| |
|
|
Binocular indirect ophthalmoscopes: |
|
|
| |
|
|
Omega Heine 100, 200 |
|
|
Neitz -10-à |
|
|
NBO-3 (ZOMZ) |
|
|
and other. |
|
|
| |
|
|
Help on the purchase of slit lamps, headworn ophthalmoscopes is possible.
|
|
|
|
